Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h

Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h

Product Details:
Place of Origin: Beijing,China
Brand Name: Holtop
Certification: CE
Model Number: HZN-18KCZ1-Y-DC-BZ & HFM-18HA1-DC
Detail Information
Place of Origin:
Beijing,China
Brand Name:
Holtop
Certification:
CE
Model Number:
HZN-18KCZ1-Y-DC-BZ & HFM-18HA1-DC
Indoor Unit Model:
HZN-18KCZ1-Y-DC-BZ
Outdoor Unit Model:
HFM-18HA1-DC
Nominal Cooling Capacity(KW):
40.4
Nominal Heating Capacity(KW):
45.4
Power Supply:
380V/3PH/50Hz
Indoor Unit Air Volume(m³/h):
9000
Indoor Unit ESP(Pa）:
360
Outdoor Unit Cooling Power Input(KW):
11.61
Outdoor Unit Outdoor Unit(KW):
12.93
Refrigerant:
R410A
Highlight:

High Light

Highlight:

Holtop DC inverter air conditioner AHU

,

DX coil air handling unit 9000 m³/h

,

Holtop air handling unit with warranty

Trading Information
Minimum Order Quantity:
1pc
Price:
Negotiable
Packaging Details:
box
Delivery Time:
Two weeks
Payment Terms:
TT
Supply Ability:
200000 units per year
Product Description
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h
Product Overview
Adopt a number of leading technologies to build a more powerful, stable and efficient cooling system. Innovative noise reduction technology minimizes the operating noise of indoor and outdoor machines and creates a quiet environment. New shell design provides better stability and improved appearance.

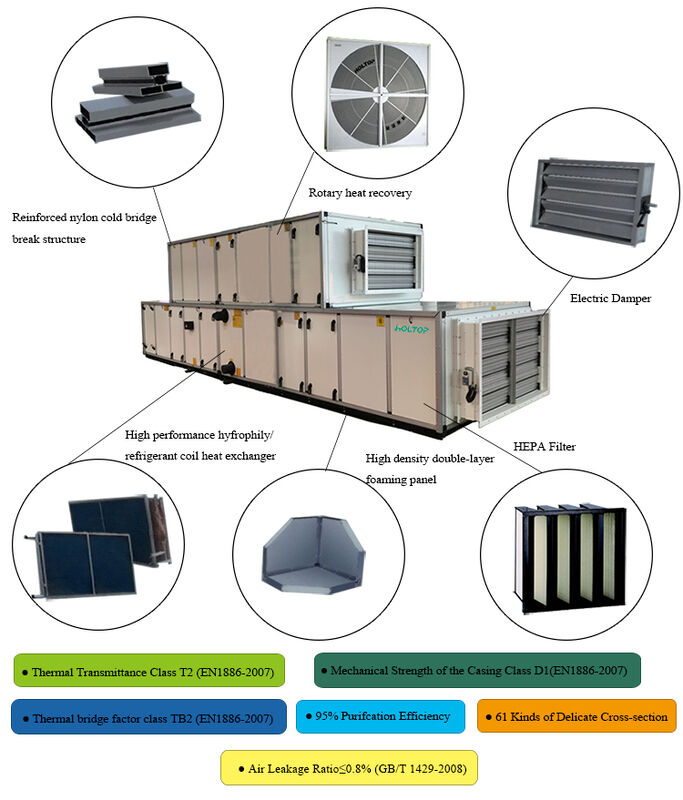

Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 0
Holtop DC DX Air Handling Unit includes DC Inverter DX air conditioner outdoor unit and constant frequency DX air conditioner outdoor unit these two series. The capacity of DC inverter DX AHU is 10-20P, while the capacity of constant frequency DX AHU is 5-18P.
On the basis of constant frequency DX AHU, the newly developed DC inverter DX AHU adopts the enhanced vapor injection technology to open a new era of low-temperature heating. The new design of air-conditioning system and self-developed control program give full play to product performance and bring users a more comfortable air-conditioning experience.
Technical Specifications
Item/Series DC Inverter Series Constant Frequency Series
Cooling capacity (kw) 25 - 509 12 - 420
Heating Capacity (kw) 28 - 569 18 - 480
Airflow (m³/h) 5500 - 95000 2500 - 80000
Frequency Range of Compressor (Hz) 20 - 120 /
Max. length of Pipe (m) 70 50
Max. Drop (m) 25 25
Operating Range Cooling
Outdoor DB temperature (°C): -5-52 Outdoor DB temperature (°C): 15 - 43
Heating
Indoor DB temperature (°C): 15 - 27
Outdoor WB temperature (°C): -20 - 27		 Indoor DB temperature (°C): 10-27
Outdoor WB temperature (°C): -10-15
Indoor Unit Features
Heat Exchangers
There are cross-flow total heat exchangers, cross-flow plate heat exchangers or rotary heat exchangers to choose from to meet the different needs of customers.
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 1
PM2.5 Filtration Solution
High Efficiency To Remove The Haze
Equipped with a high-efficiency filter element, which can effectively remove PM2.5 particles carried in the air, ensuring that the outdoor air entering the indoor air is clean.
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 2
Indoor Formaldehyde Removal Solution
The indoor unit can be added with a formaldehyde removal module to effectively filter and decompose formaldehyde molecules; coupled with the replacement and dilution of heat exchangers and filters, double removal of formaldehyde.
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 3
Fresh Air Supply
With this AHU, fresh outdoor air will be brought into the room. By increasing the oxygen concentration, reducing carbon dioxide, removing odors and other harmful gases, the indoor air quality is greatly improved.
Outdoor Unit Features
Top Discharge Outdoor Unit
Structural features of the top discharge outdoor unit
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 4
Side Discharge Outdoor Unit
Structural features of side discharge outdoor unit
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 9000 m³/h 5
