| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | DX1.5DCB4 |

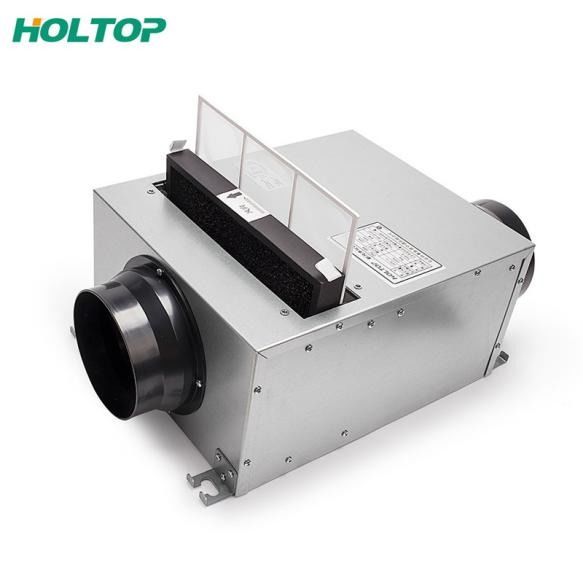

This Single Way Blower Fresh Air Filtration System (DX1.5DCB4) is currently on sale! With its outstanding one-way air delivery design, it builds a defense line for fresh breathing for you. Under the powerful fan drive, it can quickly replace the turbid indoor air and introduce continuous clean fresh air. The advanced multi-layer composite filtration technology can efficiently intercept PM2.5, pollen, bacteria and other pollutants, with a purification efficiency of up to 99%.
Products Detail
1.The single-way fresh air filtration system supplies outdoor fresh air to room with high purification. It’s equipped with double filters with PM2.5 filtration rate over 95%.
2.The airflow ranges from 150m3/h to 500m3/h for different applications. It can be used to work together with Holtop energy recovery ventilator for better air purification either used independently for air purification in air conditioning system.
3.It has the optional functions of indoor circulation. In the situation when it’s not suitable to introduce outdoor fresh air, it can bypass the air in the room for indoor air purification only.
Different installation way for reference:
1)Single-way Fresh Air Filtration System Installation
2)Single-way Fresh Air Filtration + Energy Recovery Ventilation System Installation
Specification:
| Model | Speed | Airflow(m3/h) | External Pressure (Pa) | Input Power (W) | Noise dB(A) | Power supply | Weight (Kg) |
| DX1.5DCB4 | 5 | 150 | 80 | 41 | 32 | 220V/50Hz | 9 |
| 4 | 120 | 64 | 29 | ||||
| 3 | 90 | 48 | 27 | ||||
| 2 | 60 | 32 | 25 | ||||
| 1 | 30 | 16 | 23 | ||||
| DX2.5DCB4 | 5 | 250 | 100 | 60 | 34 | 220V/50Hz | 9 |
| 4 | 200 | 80 | 31 | ||||
| 3 | 150 | 60 | 29 | ||||
| 2 | 100 | 40 | 27 | ||||
| 1 | 50 | 20 | 25 | ||||
| DX3.5DCB4 | 5 | 350 | 120 | 114 | 37 | 220V/50Hz | 9.5 |
| 4 | 280 | 96 | 33 | ||||
| 3 | 210 | 72 | 31 | ||||
| 2 | 140 | 48 | 29 | ||||
| 1 | 70 | 24 |
27
|
