| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | DX2.5DCB4 |

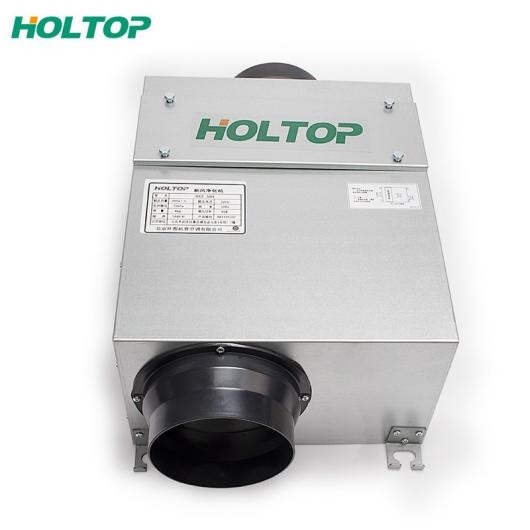

The Holtop Single Way Blower Fresh Air Filtration System (DX2.5DCB4) is a new air supply system that combines efficient filtration and powerful air delivery. It is equipped with professional-level filtration components, which can effectively intercept pollutants such as PM2.5, pollen, and dust, and continuously supply clean fresh air to the indoor area. The DC variable-frequency fan operates stably, with low energy consumption and low noise, meeting the needs of various scenarios such as home and office. With intelligent control technology, it creates a healthy and comfortable breathing environment for users.
Products Detail
1.The single-way fresh air filtration system supplies outdoor fresh air to room with high purification. It’s equipped with double filters with PM2.5 filtration rate over 95%.
2.The airflow ranges from 150m3/h to 500m3/h for different applications. It can be used to work together with Holtop energy recovery ventilator for better air purification either used independently for air purification in air conditioning system.
3.It has the optional functions of indoor circulation. In the situation when it’s not suitable to introduce outdoor fresh air, it can bypass the air in the room for indoor air purification only.
Different installation way for reference:
1)Single-way Fresh Air Filtration System Installation
2)Single-way Fresh Air Filtration + Energy Recovery Ventilation System Installation
Specification:
| Model | Speed | Airflow(m3/h) | External Pressure (Pa) | Input Power (W) | Noise dB(A) | Power supply | Weight (Kg) |
| DX1.5DCB4 | 5 | 150 | 80 | 41 | 32 | 220V/50Hz | 9 |
| 4 | 120 | 64 | 29 | ||||
| 3 | 90 | 48 | 27 | ||||
| 2 | 60 | 32 | 25 | ||||
| 1 | 30 | 16 | 23 | ||||
| DX2.5DCB4 | 5 | 250 | 100 | 60 | 34 | 220V/50Hz | 9 |
| 4 | 200 | 80 | 31 | ||||
| 3 | 150 | 60 | 29 | ||||
| 2 | 100 | 40 | 27 | ||||
| 1 | 50 | 20 | 25 | ||||
| DX3.5DCB4 | 5 | 350 | 120 | 114 | 37 | 220V/50Hz | 9.5 |
| 4 | 280 | 96 | 33 | ||||
| 3 | 210 | 72 | 31 | ||||
| 2 | 140 | 48 | 29 | ||||
| 1 | 70 | 24 |
27 |
