| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | ERVQ-B150-1B1(H02) |

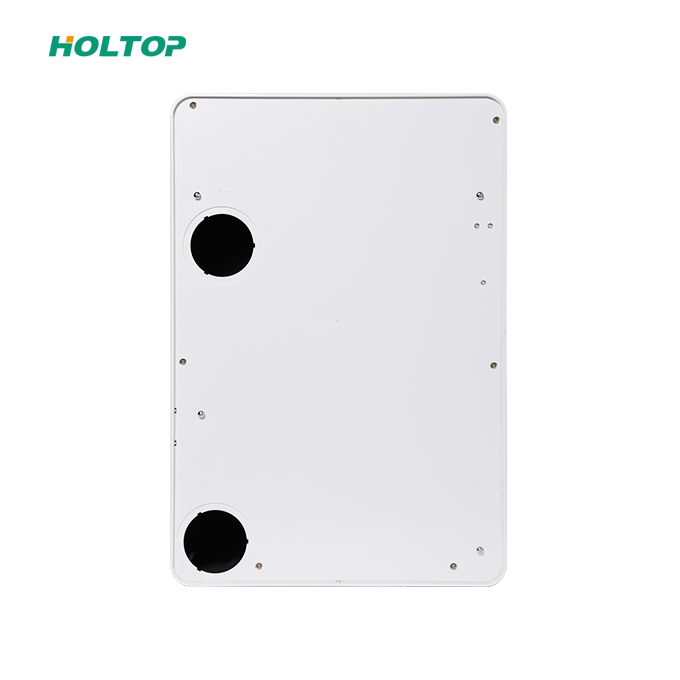

The best-selling Holtop wall-mounted ERV energy recovery ventilation equipment (with CO2 sensor version) is truly an intelligent expert in indoor air management! Equipped with an efficient energy recovery core technology, it introduces fresh air while maximizing the retention of indoor heat and cold energy, effectively reducing air conditioning energy consumption.
Product Detail
● Multiple purification, 99% HEPA filtration
● Indoor & outdoor air exchange and filtration
● High efficiency enthalpy recovery, heat exchange energy saving
● Indoor slight positive pressure
● High efficiency fan with DC motors
● Body control, Remote control, App control
● CO2 monitoring Air quality Index(AQI) monitoring
● Optional Version: European Version or North America Version
● Certification: CE, CSA
Specifications of CO2 Sensor Version Wall Mounted ERV Energy Recovery Ventilation
| Model | ERVQ-B150-1B1(H02) |
| Airflow (m3/h) | 150 |
| Filtration efficiency (%) | 99% HEPA |
| Filtration mode | Pm2.5 purify / Deep purify / Ultra purify |
| Speed | DC / 8 speed |
| Input power (W) | 35 |
| Temperature efficiency (%) | 82 |
| Noise dB(A) | 23 – 36 |
| Control | Touch screen panel / Remote control |
| Air quality display | CO2 / Temp & R.H |
| Operational Mode | Manual / Auto / Timer |
| Suitable room size (m2) | 20 – 45 |
| Dimension (mm) | 450*155*660 |
| Weight (kg) | 10 |
Under mode “Auto”, the ERV will adjust supply air volume according to indoor CO2 range, corresponding speed as below:
Remark: To ensure sufficient indoor fresh air supply, the speed will rise automatically after mode “Auto” runs for a period of time, and will return to the original speed after 5-10 minutes. During this period, the speed displayed on the screen is different from the picture above.
