| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | CFA 350T |

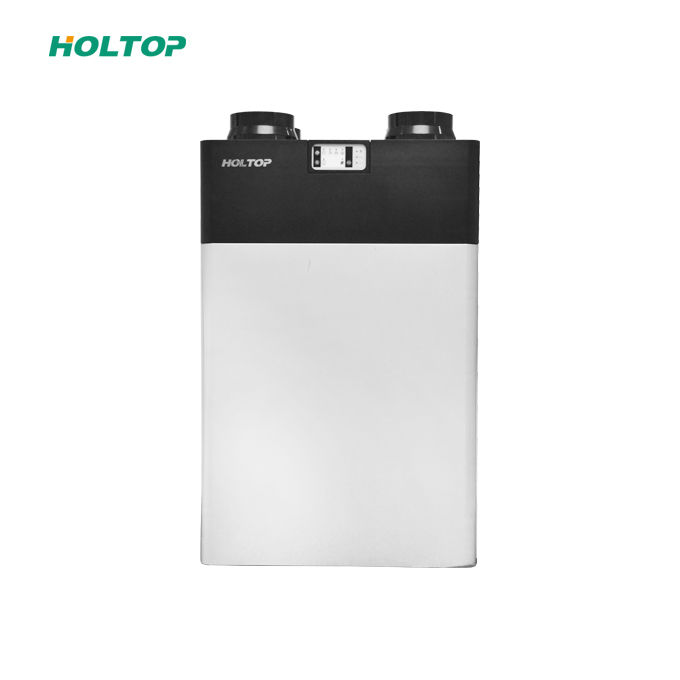

Holtop Compact Vertical Heat Recovery Ventilator( Bypass function) features a top-port vertical design, which saves installation space and facilitates pipeline layout. It is suitable for various places such as residences, offices, etc.
Products Detail
Enjoy the refreshing effect of opening a window or door while preserving indoor comfort and system efficiency. This HRV offers the ability to remove moisture from incoming air during hot, steamy months and can supply a refreshing infusion of outdoor air all year long. It’s the perfect addition to your modestly-sized home.
Top port, compact unit. Ideally suited for tight installations.
Structure of Top Ports Vertical Compact Heat Recovery Ventilator
Heat exchanger for Top Port Vertical Heat Recovery Ventilator
Motor for Top Port Vertical Heat Recovery Ventilator
Controllers for Top Port Vertical Heat Recovery Ventilator
Installation for Top Port Vertical Heat Recovery Ventilator
Certificates for Top Port Vertical Heat Recovery Ventilator
Maintenance Tips for Top Port Vertical Heat Recovery Ventilator
Product Specifications for Top Port Vertical Heat Recovery Ventilator
| MODEL No. | CFA 250T | CFA 350T | CFA 500T |
| Voltage [ V ] / Frequency [ Hz ] | 230V/50Hz | ||
| Airflow [ m³/h ] | 250 | 350 | 500 |
| External Static Pressure [ Pa ] | 130 | 150 | 160 |
| Temperature Efficiency at Rated Airflow [ % ] | 85 | 85 | 85 |
| Max Temperature Efficiency [ % ] | 95 | 95 | 95 |
| Rated Power [ W ] | 170 | 320 | 480 |
| Noise [ dB(A) ] | 35 | 37 | 39 |
| Energy Efficiency Class | A | A | A |
| Weight [ kg ] | 40 | 40 | 50 |
