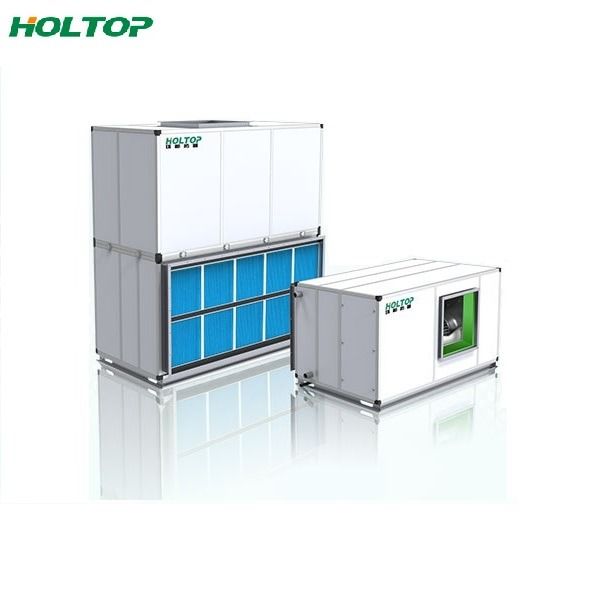

Holtop Standard Air Handling Units

      - Air conditioning terminal
      - Airflow: 1000~60000 CMH
      - Installation: ceiling mounted, horizontal, or vertical

      - Application Case: Public Buildings, Large Venues, Industrial Factories

Products Detail

      HOLTOP Standard Air Handling Unit is developed and manufactured using advanced technology and production processes, which has the characteristics of high strength, good sealing performance, compact structure, and flexible installation. It provides a comfortable and clean air conditioning environment for shopping malls, office buildings, stations, hospitals, factories, etc.

      Holtop standard air handling units provide users with ceiling, horizontal, and vertical machine models, with an air volume range of 1000-60000 CMH, meeting various residual pressure requirements. They can flexibly select functional sections such as filters, humidifiers, and heaters, enabling quick selection, supply, and installation. They are widely used in commercial, industrial, and other central air conditioning systems.

      The frame of the unit is formed by integrated rolling of colored steel plates, and a unique cold bridge structure is formed by PVC insulation sleeves inside, which enhances strength while isolating wet and cold air to avoid condensation on the surface of the unit

      Corrosion resistant color steel plate outer frame beam

      Strengthening inner lining components

      Polyamide sealing strip

      Anticorrosive and aesthetically pleasing outer protective board

      High strength PVC border strip

      Easy to disassemble self tapping screws

      PVC insulation sleeve

      High strength galvanized sheet inner frame beam

Good sealing performance

      The panel of the unit adopts an embedded assembly structure, and a new polymer sealing material is used between the panel and the frame for sealing, which is convenient for disassembly and maintenance while ensuring extremely low air leakage rate and good air tightness of the unit

      High-Quality Fans for Smooth Operation

      Select high-quality brand fans based on the requirements of air volume and static pressure values

      The fan impeller and belt have undergone static and dynamic balance correction, vibration correction, and the base is equipped with shock absorbers.

      The air outlet is designed according to aerodynamic performance, and there is a soft connection with the box to effectively reduce vibration transmission, ensuring smooth and reliable operation.
