HFW-65HA1 Holtop AHU Modular Air Cooled Cold Water (Heat Pump) Unit
  • HFW-65HA1 Holtop AHU Modular Air Cooled Cold Water (Heat Pump) Unit
  • HFW-65HA1 Holtop AHU Modular Air Cooled Cold Water (Heat Pump) Unit

HFW-65HA1 Holtop AHU Modular Air Cooled Cold Water (Heat Pump) Unit

Product Details:
Place of Origin: Beijing,China
Brand Name: Holtop
Certification: CE
Model Number: HFW-65HA1
Detail Information
Place of Origin:
Beijing,China
Brand Name:
Holtop
Certification:
CE
Model Number:
HFW-65HA1
Model:
HFW-65HA1
Nominal Cooling Capacity KW:
65
Nominal Heating Capacity KW:
71
Nominal Total Cooling Input Power KW:
19.2
Nominal Total Heating Input Power KW:
20.2
Power Supply:
380V/3N~50Hz
Highlight:

High Light

Highlight:

Holtop modular air cooled unit

,

AHU cold water heat pump

,

Holtop air conditioner with warranty

Trading Information
Minimum Order Quantity:
1pc
Price:
Negotiable
Packaging Details:
box
Delivery Time:
Two weeks
Payment Terms:
TT
Supply Ability:
200000 units per year
Product Description
HFW-65HA1 Holtop AHU Modular Air Cooled Cold Water (Heat Pump) Unit
This product series features different specifications with cooling capacity ranging from 65 to 130 kW and heating capacity ranging from 71 to 141 kW. It can meet varying load demands when used with FCU and combined type AHU systems. The terminal equipment consists of various central air-conditioning systems designed to meet building cooling requirements.
Product Features
Holtop modular air cooled chiller safety protection system Designed with more than 10 safety protection functions to ensure comprehensive protection for both the chiller unit and system operation. The unit is controlled through a multi-variable monitoring system to ensure stable and efficient performance.
Holtop chiller operating in wide temperature range Suitable for operation in a wide outdoor temperature range from -20°C to 48°C, providing reliable performance in diverse climate conditions.
Holtop chiller multiple compressor design Features multiple compressors in a single unit design for enhanced reliability and operational flexibility.

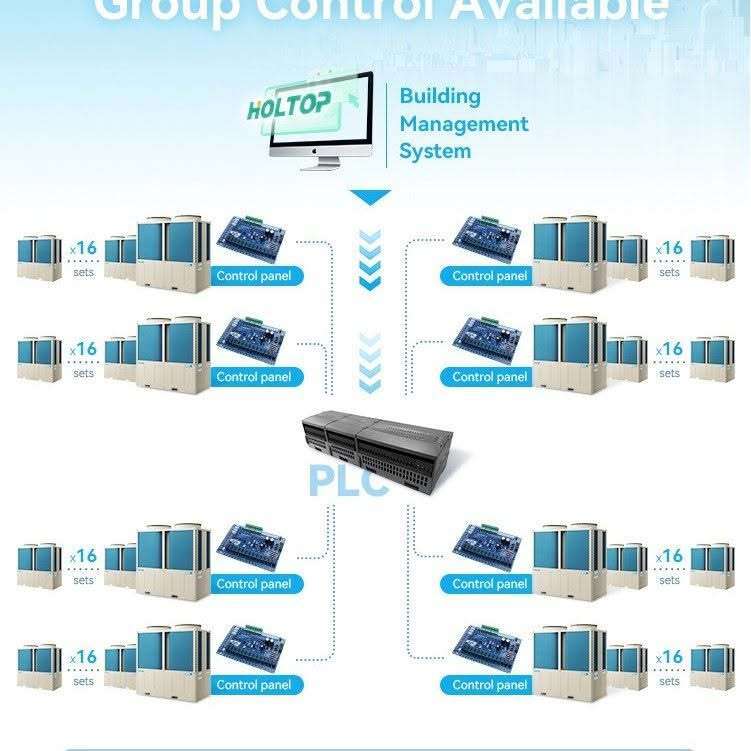

Holtop modular combination chiller design Utilizes modular combination design without the need for master or sub-master unit configuration, simplifying installation and operation.
Holtop chiller communication interface Standard RS485 building communication interface with open access to ModBus communication protocol for seamless integration with building management systems.
Holtop modular air cooled chiller unit overview
Technical Specifications
Cooling Capacity: 65 to 130 kW
Heating Capacity: 71 to 141 kW
Operating Temperature Range: -20°C to 48°C
Communication Interface: RS485 with ModBus protocol
Compressor Configuration: Multiple compressors per unit
Design Type: Modular combination
