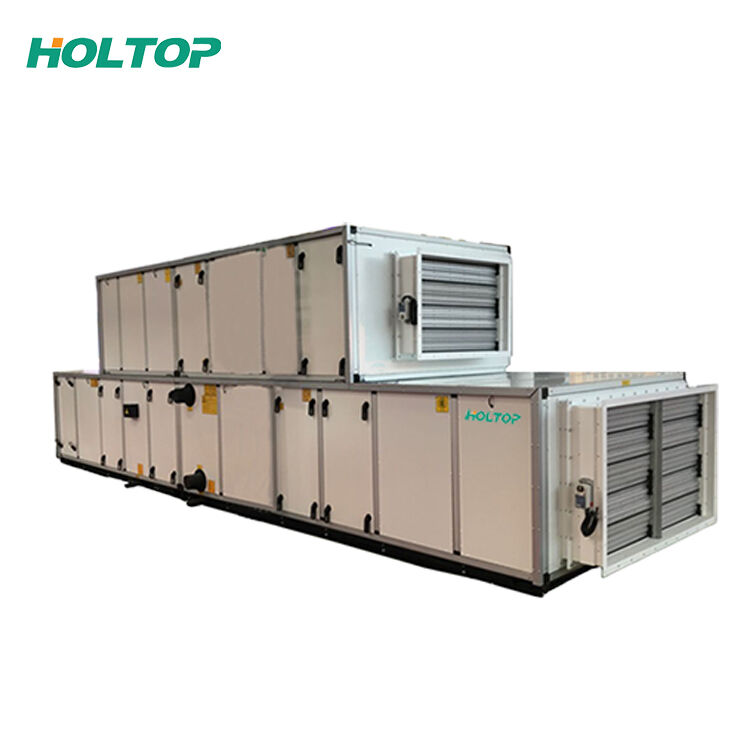

Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
  • Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h

Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h

Product Details:
Place of Origin: Beijing,China
Brand Name: Holtop
Certification: CE
Model Number: HZN-40KCZ1-Y-DC-BZ & HFM-30HB1-DC+HFM-10HA1-DC
Detail Information
Place of Origin:
Beijing,China
Brand Name:
Holtop
Certification:
CE
Model Number:
HZN-40KCZ1-Y-DC-BZ & HFM-30HB1-DC+HFM-10HA1-DC
Indoor Unit Model:
HZN-40KCZ1-Y-DC-BZ
Outdoor Unit Model:
HFM-30HB1-DC+HFM-10HA1-DC
Nominal Cooling Capacity(KW):
98.5
Nominal Heating Capacity(KW):
106.3
Power Supply:
380V/3PH/50Hz
Indoor Unit Air Volume(m³/h):
18000
Indoor Unit ESP(Pa）:
560
Outdoor Unit Cooling Power Input(KW):
24.4+6.34
Outdoor Unit Outdoor Unit(KW):
23.8+6.83
Refrigerant:
R410A
Highlight:

High Light

Highlight:

Holtop DC inverter air conditioner AHU

,

DX coil air handling unit 18000 m³/h

,

inverter air handling unit with DX coil

Trading Information
Minimum Order Quantity:
1pc
Price:
Negotiable
Packaging Details:
box
Delivery Time:
Two weeks
Payment Terms:
TT
Supply Ability:
200000 units per year
Product Description
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h
Holtop DC Inverter Air Conditioners incorporate advanced technologies to deliver powerful, stable, and efficient cooling performance. Innovative noise reduction technology minimizes operational noise from both indoor and outdoor units, creating a quiet environment. The redesigned housing offers enhanced stability and improved aesthetics.
Product Overview
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 0
Holtop DC DX Air Handling Units are available in two series: DC Inverter DX air conditioner outdoor units and constant frequency DX air conditioner outdoor units. The DC inverter series offers capacities from 10-20P, while the constant frequency series ranges from 5-18P. The newly developed DC inverter DX AHU features enhanced vapor injection technology, enabling superior low-temperature heating performance. Advanced air-conditioning system design and proprietary control programming optimize product performance for enhanced user comfort.
Technical Specifications
Item/Series DC Inverter Series Constant Frequency Series
Cooling capacity (kw) 25 - 509 12 - 420
Heating Capacity (kw) 28 - 569 18 - 480
Airflow (m³/h) 5500 - 95000 2500 - 80000
Frequency Range of Compressor (Hz) 20 - 120 /
Max. length of Pipe (m) 70 50
Max. Drop (m) 25 25
Operating Range Cooling
Outdoor DB temperature (°C): -5-52 Outdoor DB temperature (°C): 15 - 43
Indoor WB temperature (°C): 15 - 24 Indoor WB temperature (°C): 15 - 23
Heating
Indoor DB temperature (°C): 15 - 27 Indoor DB temperature (°C): 10-27
Outdoor WB temperature (°C): -20 - 27 Outdoor WB temperature (°C): -10-15
Indoor Unit Features
  • Heat Exchangers: Multiple options available including cross-flow total heat exchangers, cross-flow plate heat exchangers, or rotary heat exchangers to meet diverse customer requirements
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 1
PM2.5 Filtration Solution
  • High Efficiency Haze Removal: Equipped with high-efficiency filter elements that effectively remove PM2.5 particles from incoming air, ensuring clean outdoor air enters indoor spaces
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 2
Formaldehyde Removal Solution
  • Optional formaldehyde removal module effectively filters and decomposes formaldehyde molecules
  • Combined with heat exchanger and filter replacement and dilution, provides dual formaldehyde removal capability
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 3
Fresh Air Ventilation
The AHU system brings fresh outdoor air into indoor spaces, increasing oxygen concentration while reducing carbon dioxide levels and removing odors and harmful gases, significantly improving indoor air quality.
Outdoor Unit Structural Features
Top Discharge Outdoor Unit
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 4
Side Discharge Outdoor Unit
Holtop DC Inverter Air Conditioners DX Coil Air Handling Units 18000 m³/h 5
