| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | HBS-LB539/316 |

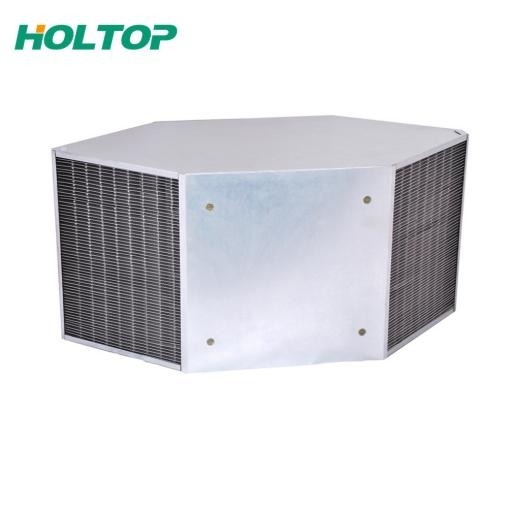

Hot Sale Plate Cross Counterflow Heat Exchanger
This Hot Sale Plate Cross Counterflow Heat Exchanger stands out for its high efficiency. It features a resin framework with parallel heat exchange channels, a hexagonal structure for efficient heat exchange, and specially designed ER paper heat exchange material.
● Model: HBS-LB539/316
● Type: Cross counter flow sensiable heat exchanger (Recuperator)
● Material: Aluminum Foils
● Total separation of Fresh Air & Exhaust Air
● Heat recovery efficiency up to 90%
● Two sides press shaping
● Single folded edge,good sealing
Products Detail
Working principle of Air to Air Cross Counterflow Plate Type Sensible Heat Exchangers (Recuoperator)
| Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated. | |
Main features of Holtop High Efficiency Heat recuperators
1. Sensible heat recovery core
2.Total separation of fresh & exhaust air streams
3.Heat recovery efficiency up to 90%
4.2-side press shaping
5.Single folded edge
6.Completely joint sealing
Specifications
| Model | A(mm) | B(mm) | Length per piece (C) | Optional spacing (mm) |
| HBS-LB539/316 | 316 | 539 | Custom-made Max. 650mm | 2.1 |
