| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | HBS-LB539/316 |
Plate Heat Exchangers Featuring Cross Counterflow Flow Pattern
The cross-flow plate heat exchanger, with its unique fluid flow design, performs exceptionally well in the field of heat exchange. Its core consists of wave-shaped plate sheets combined in layers. This design not only minimizes the equipment size and reduces energy consumption, but is also applicable to multiple industries such as refrigeration, HVAC, and chemical engineering.
● Model: HBS-LB539/316
● Type: Cross counter flow sensiable heat exchanger (Recuperator)
● Material: Aluminum Foils
● Total separation of Fresh Air & Exhaust Air
● Heat recovery efficiency up to 90%
● Two sides press shaping
● Single folded edge,good sealing
Products Detail

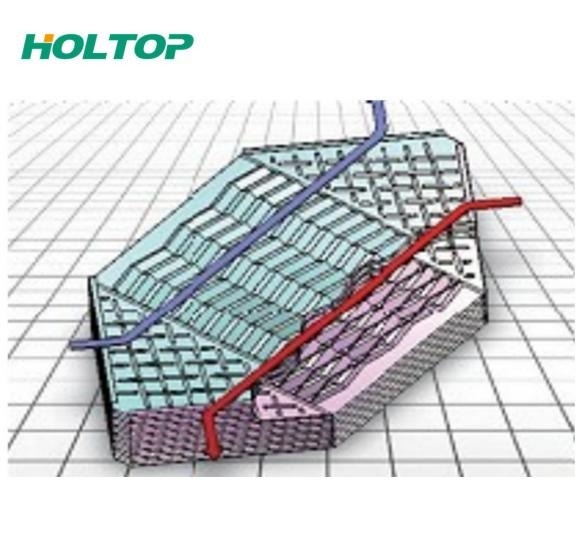

Working principle of Air to Air Cross Counterflow Plate Type Sensible Heat Exchangers (Recuoperator)
| Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated. | |
Main features of Holtop High Efficiency Heat recuperators
1. Sensible heat recovery core
2.Total separation of fresh & exhaust air streams
3.Heat recovery efficiency up to 90%
4.2-side press shaping
5.Single folded edge
6.Completely joint sealing
Specifications
| Model | A(mm) | B(mm) | Length per piece (C) | Optional spacing (mm) |
| HBS-LB539/316 | 316 | 539 | Custom-made Max. 650mm | 2.1 |
