| Place of Origin: | Beijing,China |
| Brand Name: | Holtop |
| Certification: | CE |
| Model Number: | HBS-LB539/316 |

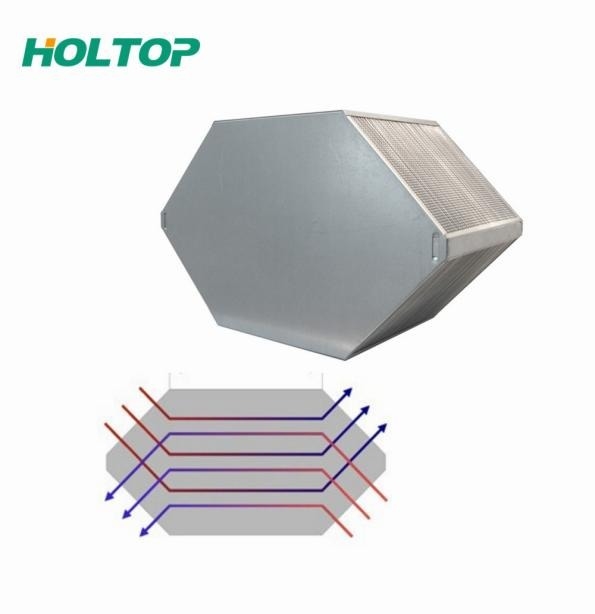

Holtop Plate Cross Counterflow Heat Exchangers
Working principle: A channel is formed between two adjacent aluminum foils, which is used for fresh air flow and exhaust air flow. Some of the air flows cross each other within the exchanger, while some flow in the opposite direction within the exchanger, resulting in heat transfer, and the fresh air and exhaust air are completely separated.
● Model: HBS-LB539/316
● Type: Cross counter flow sensiable heat exchanger (Recuperator)
● Material: Aluminum Foils
● Total separation of Fresh Air & Exhaust Air
● Heat recovery efficiency up to 90%
● Two sides press shaping
● Single folded edge,good sealing
Products Detail
Working principle of Air to Air Cross Counterflow Plate Type Sensible Heat Exchangers (Recuoperator)
| Two neighbor aluminum foils form a channel for fresh or exhaust air stream. Heat is transferred when the partial air streams flow crossly and partial air streams flow counter through the channels, and fresh air and exhaust air is totally separated. | |
Main features of Holtop High Efficiency Heat recuperators
1. Sensible heat recovery core
2.Total separation of fresh & exhaust air streams
3.Heat recovery efficiency up to 90%
4.2-side press shaping
5.Single folded edge
6.Completely joint sealing
Specifications
| Model | A(mm) | B(mm) | Length per piece (C) | Optional spacing (mm) |
| HBS-LB539/316 | 316 | 539 | Custom-made Max. 650mm | 2.1 |
