Plate Type Sensible Recovery Heat Exchanger HRV Heat Transfer System

      Latest Version Holtop Plate Type Sensible Heat Exchanger

      The Holtop Plate Type Sensible Heat Exchanger operates on the principle of recuperative heat exchange. Since there are no moving parts in this process, it is highly reliable and has a long service life. There is no wear - and - tear associated with mechanical components, reducing the need for frequent maintenance and replacement.

● Model: HBS-ZF250/250~HBS-ZF1600/1600

● Type: Plate Type Crossflow Sensible Heat Exchanger (Recuperator)

● Material: Aluminum Foils

● Sensible heat recovery
● Total separation of OA & EA
● Heat recovery efficiency up to 80%
● Double folded edge,Good sealing
● Various specifications is optional
● Application: Residential,commercial and industrial heat recuperative ventilation system

Products Detail

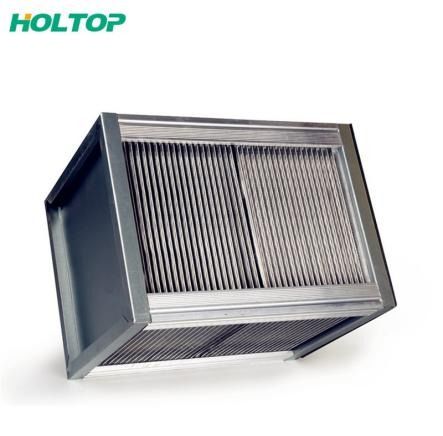

      Holtop Air to Air Crossflow Plate heat exchanger- sensible heat type

Main Features of Holtop Air to Air Plate Type Sensible Heat Exchangers

      Sensible heat recovery core

      Fresh air & exhaust air is separated totally

      Heat recovery efficiency up to 80%

      2-sides press shaping,double folded edge,good joint sealing

      Resistance of pressure difference up to 2500Pa

      Under pressure of 700Pa, air leakage less than 0.6%

Material type

      B series (standard type)

      Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Max. air temperature 100℃, it is suitable for most of the occasion.

      F series ( Anti-corrosion type)

      Heat exchanger is made of pure aluminum foils cover by special anti-corrosion material, with galvanized end cover and aluminium alloy wrap angle., it is suitable for the corrosive gas occasion.

G series (high temperature type)

      Heat exchanger is made of pure aluminum foils, with galvanized end cover and aluminium alloy wrap angle. Sealing material is special and allow the Max. air temperature to be 200℃, it is suitable for special high temperature occasion.

      Aluminum foils thickness range from 0.12 to 0.18mm because of the different specification heat exchanger.

      Heat exchanger size and air volume
